Description
gtr gear OS-88 Sequential Transmission for Nissan R32/33/34 Skyline GTR StandardDescription **OS 88 TRANMSISSIONS ARE BUILT TO ORDER. LEADTIME TO SHIP IS ROUGHLY 6 MONTHS FROM TIME OF ORDER** The OS 88 6 Speed Sequential Transmission is specifically designed to maximize RB26s engine performance potential with tested and optimized gear ratios. The 88 of OS 88 designates the distance of 88 mm between gear axes. By optimizing the gear tooth width and axes distance, we were able to maximize the size of gears used in OS 88 to achieve
Description
**OS-88 TRANMSISSIONS ARE BUILT TO ORDER. LEADTIME TO SHIP IS ROUGHLY 6 MONTHS FROM TIME OF ORDER**

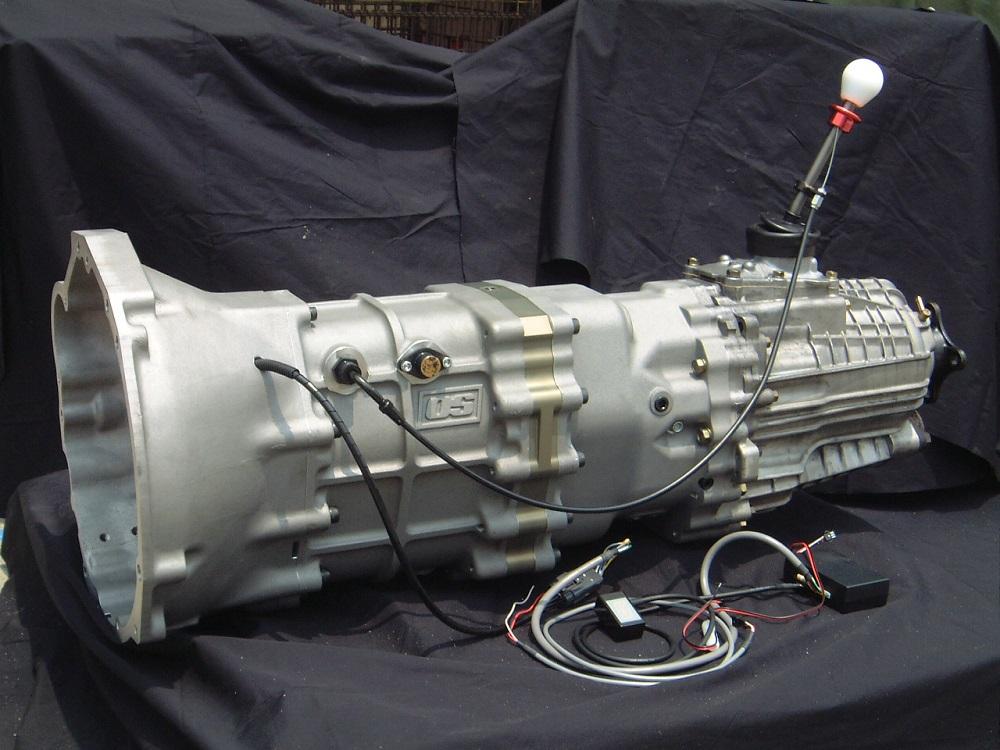

The OS-88 6-Speed Sequential Transmission is specifically designed to maximize RB26’s engine performance potential with tested and optimized gear ratios.
The “88” of OS-88 designates the distance of 88 mm between gear axes. By optimizing the gear tooth width and axes distance, we were able to maximize the size of gears used in OS-88 to achieve a significant increase in strength within the dimensions of a BNR32 / BCNR33 transmission. Along with its unique design, its components are manufactured with carefully selected raw-forged materials.
The result is a sequential transmission optimized for RB26, that can handle up to 1500 horsepower.
Aside from its optimal gear ratios and outstanding durability, we utilized a unique dog-ring structure and helical-cut gears to minimize the drivetrain noise and shifting efforts
- Comes with bellhousing and shifter assembly
- Helical-cut gears for quieter street performance
- Non-synchromesh dog-ring structure
- For use in BNR32 / BCNR33, factory transfer case and prop shaft is reuse
- For use in BNR34, BNR32 / BCNR33 transfer case and prop shaft is required
- Available with 3 different gear ratio options
Standard & Optional Gear Ratios
|
|
1st |
2nd |
3rd |
4th |
5th |
6th |
|
Standard |
2.609 |
1.934 |
1.521 |
1.210 |
1.000 |
0.852 |
|
Option 1 |
2.609 |
1.934 |
1.521 |
1.210 |
1.000 |
0.785 |
|
Option 2 |
2.890 |
1.981 |
1.468 |
1.174 |
1.000 |
0.757 |
|
Option 3 |
2.516 |
1.865 |
1.468 |
1.174 |
1.000 |
0.822 |
